Large Block-Die Forging

A large shaped alloy-steel forging produced with block-die constraints to improve dimensional consistency and material utilization.

Home/ Manufacturing Records/ Large Block-Die Forging

Engineering case

Engineering challenge, manufacturing response and verified result

Component application, material and performance requirements are translated into defined manufacturing controls and documented verification.

01Project context

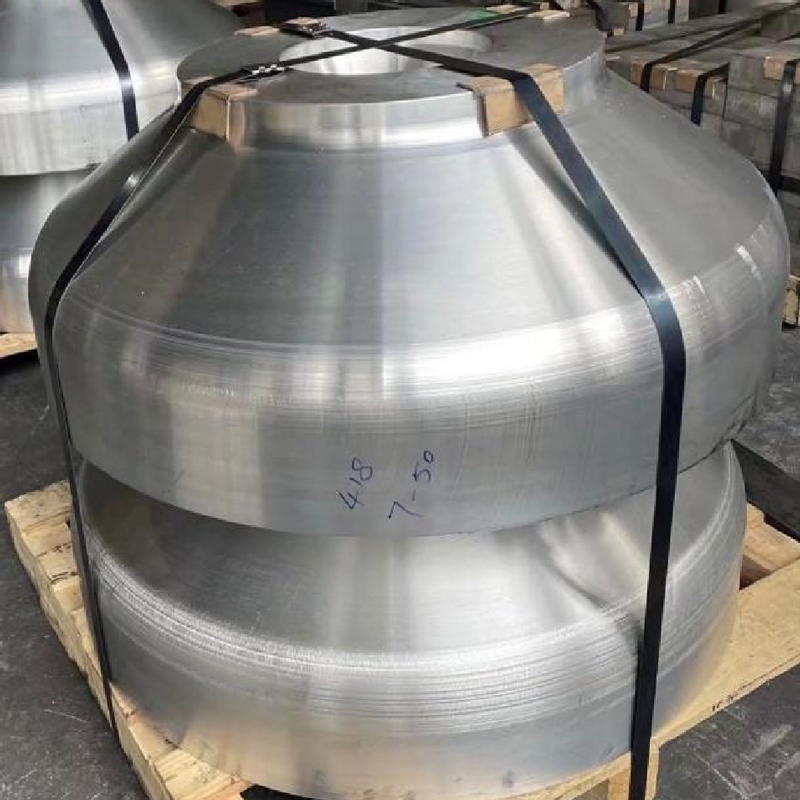

Additional view of Large Block-Die Forging — Additional view of the same product

Component: Large Block-Die Forging

Dimensions & Weight: Project-specific

Application

Complex heavy-equipment components

Material

Alloy steel

Performance & acceptance points

Block-die constrained forming
Suitable for large complex geometries

02Engineering problem

Challenge

For Complex heavy-equipment components, the Large Block-Die Forging must use Alloy steel at project-specific dimensions and weight while meeting Block-die constrained forming; Suitable for large complex geometries. The engineering challenge is coordinated control of die filling, grain-flow orientation and dimensional repeatability.

03Manufacturing response

Manufacturing Scope

01Drawing & volume review02Die and tooling design03Trial & process approval04Closed- or block-die forging05Machining & heat treatment06Batch inspection & delivery

Core Manufacturing Strategy

YL Solution

The manufacturing strategy focuses on die filling, grain-flow orientation and batch consistency. Tooling, trial approval, forming parameters, heat treatment and machining requirements are coordinated, with first-article and batch inspection governing release.

Forming capabilityDies, tooling and trial approval

Process controlDie filling, grain flow and batch repeatability

Downstream workHeat treatment, machining and surface control

Inspection controlFirst-article, batch, dimensional and property verification

04Verified delivery

Result / Verification

Delivery basis: Build-to-print after engineering review. Block-die constrained forming; Suitable for large complex geometries are incorporated into the project inspection plan, with final inspection records and the quality dossier supporting acceptance and release.
