Manufacturing Record

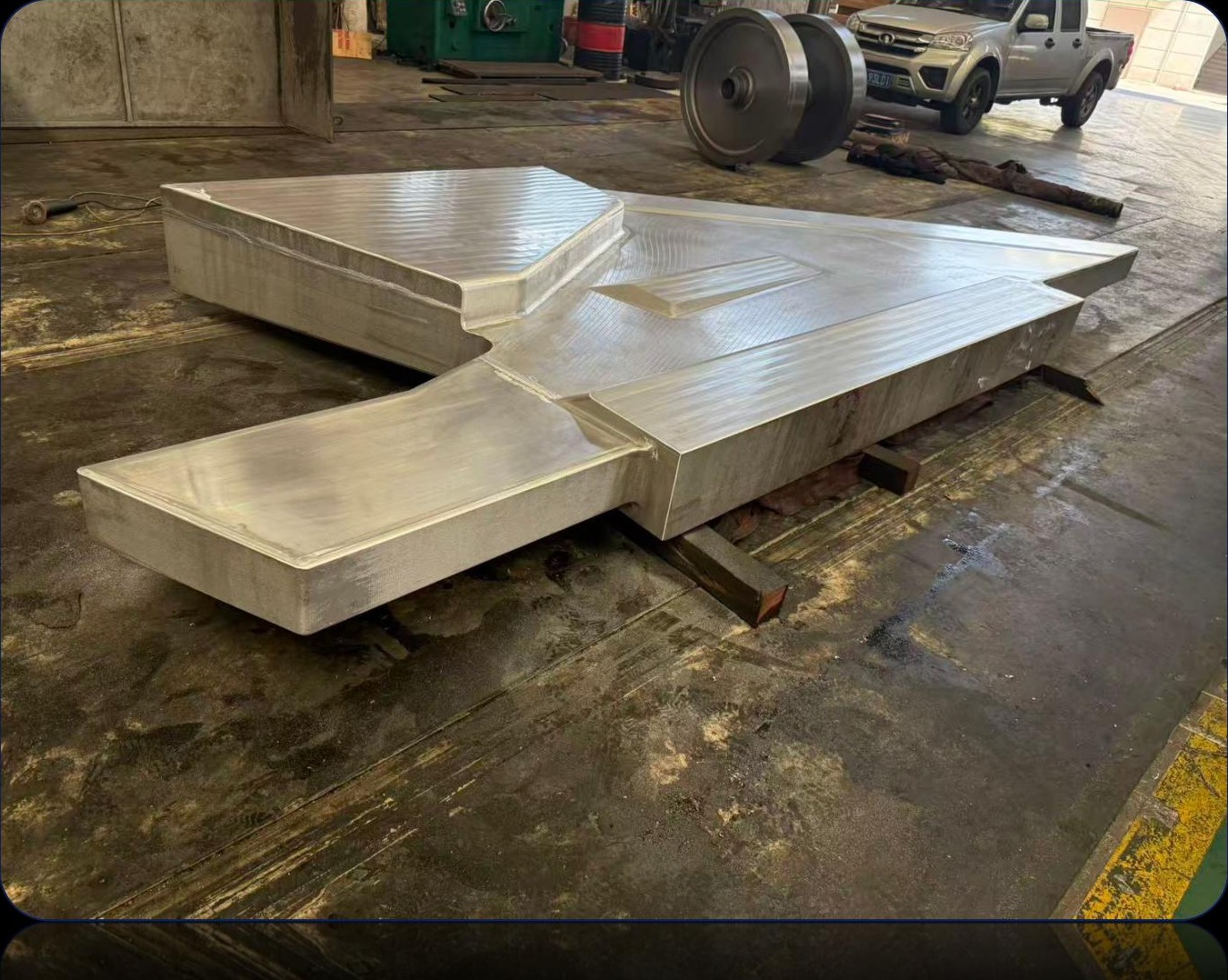

A 6061-T6 large shaped forging measuring 5 metres long and 2.3 metres wide for aviation structures.
Engineering case
Component application, material and performance requirements are translated into defined manufacturing controls and documented verification.
Aviation structures
6061-T6 aluminum alloy
For Aviation structures, the 6061-T6 Large Shaped Aviation Forging must use 6061-T6 aluminum alloy at Length 5 m; width 2.3 m scale while meeting Large shaped geometry; Five-metre component length. The engineering challenge is coordinated control of the forming-temperature window, heat-treatment response and machining distortion.
The manufacturing strategy controls the aluminum-alloy temperature window, heat-treatment response and machining distortion. Billet condition, heating and deformation parameters, solution ageing and finish-machining allowance are coordinated with material, property, dimensional and surface verification.
Delivery basis: Machined condition. Large shaped geometry; Five-metre component length are incorporated into the project inspection plan, with final inspection records and the quality dossier supporting acceptance and release.
Material grade and batch traceability
Mechanical-property and heat-treatment verification to the approved specification
UT / PT, dimensional and surface inspection as technically required
Material certificate and heat/lot traceability
Heat-treatment and inspection records
Final dimensional report and release dossier
