Manufacturing Record

Forged Flanges in Multiple Sizes

A broad flange portfolio including large-diameter and long-neck designs in carbon and alloy structural steels.

Home/ Manufacturing Records/ Forged Flanges in Multiple Sizes

Engineering case

Engineering challenge, manufacturing response and verified result

Component application, material and performance requirements are translated into defined manufacturing controls and documented verification.

01Project context

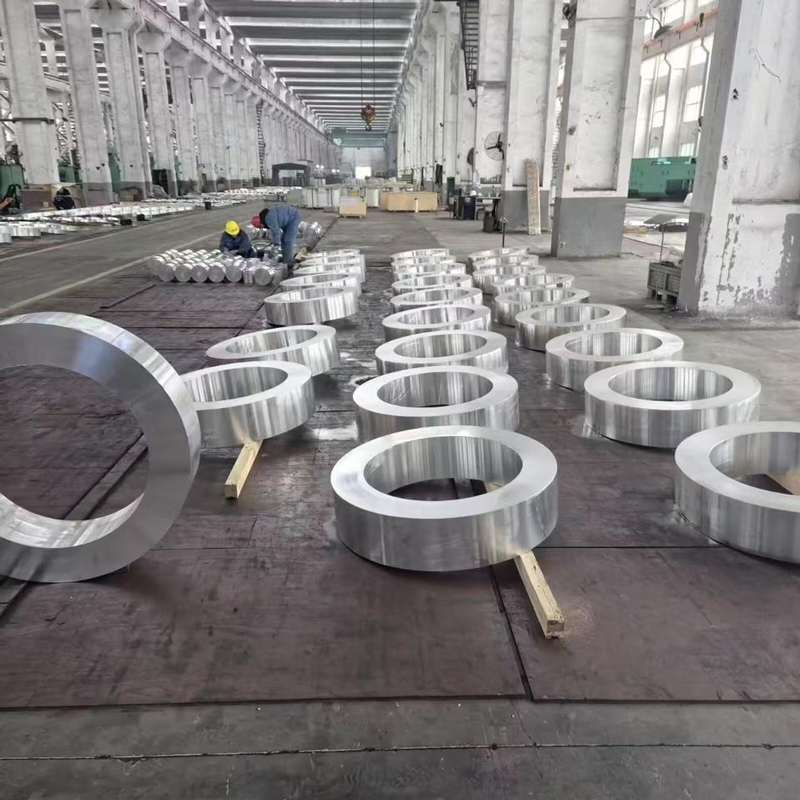

Additional view of Forged Flanges in Multiple Sizes — Additional view of the same product

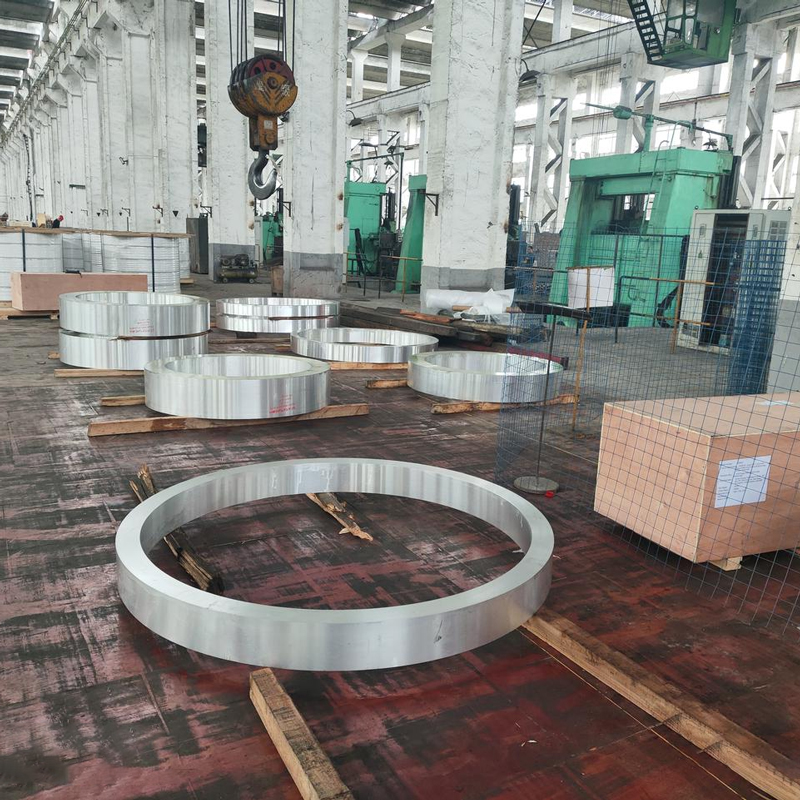

Component: Forged Flanges in Multiple Sizes

Dimensions & Weight: Project-specific

Application

Energy, petrochemical and machinery systems

Material

Carbon and alloy structural steels

Performance & acceptance points

Large diameter and long-neck variants
As-forged or machined delivery

02Engineering problem

Challenge

For Energy, petrochemical and machinery systems, the Forged Flanges in Multiple Sizes must use Carbon and alloy structural steels at project-specific dimensions and weight while meeting Large diameter and long-neck variants; As-forged or machined delivery. The engineering challenge is coordinated control of metal flow, section uniformity and internal integrity.

03Manufacturing response

Manufacturing Scope

01Material & heat review02Heating & open-die forging03Post-forging heat treatment04Rough & finish machining05NDT & property testing06Final inspection & packing

Core Manufacturing Strategy

YL Solution

The forming strategy controls metal flow, section uniformity and internal integrity. Heating practice, deformation sequence, forging reduction, heat treatment and machining allowance are coordinated with defined material, dimensional, NDT and property release points.

Forming capabilityOpen-die hydraulic presses and project-specific tooling

Heat treatmentPost-forging heat treatment aligned to material and property targets

MachiningHeavy turning, milling and project-specific finishing

Inspection controlChemistry, mechanical properties, NDT and dimensional inspection

04Verified delivery

Result / Verification

Delivery basis: Build-to-print after engineering review. Large diameter and long-neck variants; As-forged or machined delivery are incorporated into the project inspection plan, with final inspection records and the quality dossier supporting acceptance and release.
